Gunner

Ready. Aim. Throttle.

Gunner

106 Cubic-Inch Freedom V-Twin

The Gunner is a display of true American engineering muscle. It’s just itching to unleash 110 ft-lb of torque from 106 cubic inches of Freedom V-Twin.



6-Speed Overdrive Transmission

Blow away everything on the road with this 6-Speed Overdrive Transmission. Shift smoothly, powerfully, and confidently whether on the highway or downtown.

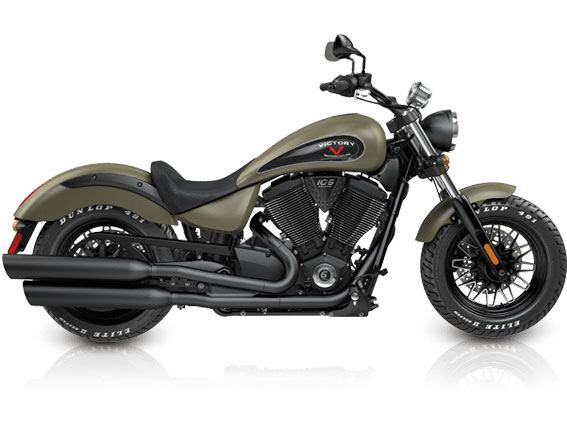

COLOR
  • Suede Titanium Metallic
  • Suede Green Metallic
Specifications
ABS/Cruise Control

Not Equipped

Dry Weight

649 lb (294 kg)

Displacement

106 ci / 1731 cc

Oil Capacity

5.0 qts / 4.73 ltr

Front Suspension

Telescopic Fork/ 5.1" (130mm)

Rear Suspension

Single Monotube Gas/Preload Adjustable/3.0" (75mm)

Brake System Type

Not Linked

Front Brakes

Single 300 x 5mm/ Floating Rotor/ 4 Piston Caliper

Rear Brakes

Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

ENGINE & DRIVETRAIN
Battery

YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA

Charging System

38 Amps Max Output

Compression Ratio

9.4 : 1

Cooling

Air / oil

Drive/Driven Clutch

Wet Multi-Plate/Diaphragm Spring

Exhaust

Dual-Staggered Slash-Cut with Common Volume

Fuel System

Electronic Fuel Injection with dual 45mm throttle body

Transmission/Final Drive

Carbon Fiber Reinforced Belt

Transmission/Primary Drive

Gear Drive with Torque Compensator

Transmission Type

6 Speed Overdrive/Constant Mesh

Valve Train

4 Valves per Cylinder, Hydraulic Lifters & Cam Chain Adjusters

Bore x Stroke (mm)

101 X 108 mm

DIMENSIONS
Fuel Capacity (Litres)

4.5 gal / 17.0 ltr

Gross Vehicle Weight Rating

1151 lbs / 523 kg

Ground Clearance

4.7 in / 120 mm

Rake/Trail

32°/6.7 in (170.0 mm)

Seat Height

25.0 in / 635 mm

Wheelbase

64.8 in / 1647 mm

Overall Length (in./mm.)

93.4 in / 2372 mm
