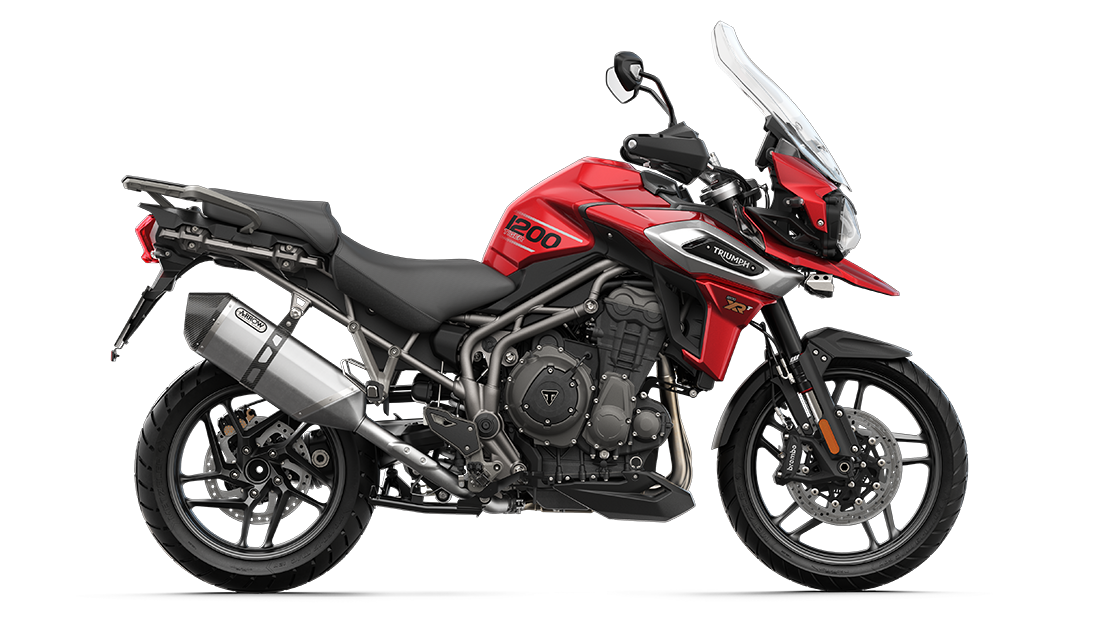

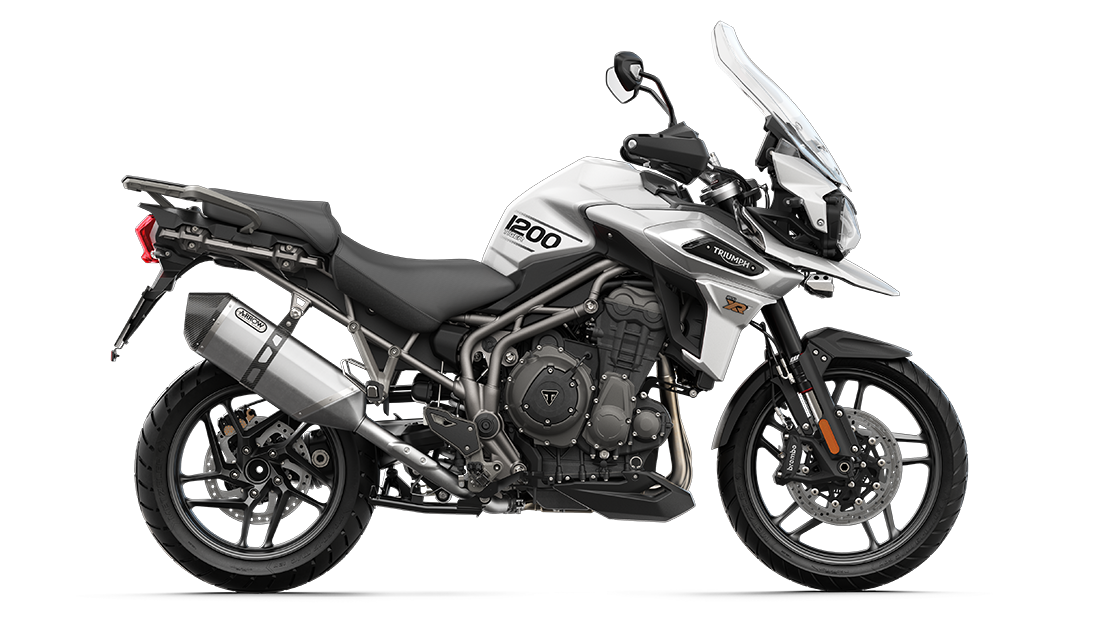

TIGER 1200 XRT

Enjoy that first-class feeling on your travels, with the highest-specification ‘fully-loaded’ Tiger 1200 XRT.
This is a motorcycle that's packed with more power, advanced ergonomics, contemporary style and the absolute highest level of state-of-the-art technology ever on a Tiger XR, all to deliver the ultimate road-focused adventure.
In terms of exciting additional features, the XRT stands above all others in the XR range, adding to its existing specification with; adaptive cornering lighting, Triumph Shift Assist, all-LED lighting, titanium and carbon fibre-wrapped Arrow silencer, five riding modes to tailor your ride, hill hold, heated grips and seats, and an electrically adjustable touring screen.

TIGER 1200 XRT
  • NEW FEATURES

  • 11KG lighter than previous model
  • Triumph Shift Assist (TSA)
  • LED adaptive corning lighting
  • Titanium and carbon fibre wrapped Arrow silencer
  • CORE FEATURES

  • 5 riding modes: Road, Rain, Off-Road, Sport and Rider programmable
  • Hill hold control
  • Heated seats
  • Unique-in-class electrically adjustable touring screen
  • LED auxiliary lighting
  • Additional 3 x TFT styles
COLOR
ENGINE AND TRANSMISSION
Type

Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder

Capacity

1215cc

Bore Stroke

85 mm / 71.4mm

Compression

11.0:1

Max Power EC

139 PS/137 Bhp (102 kW) @ 9,300 rpm

Max Torque EC

123 Nm @ 6,200 rpm

System

Ride by Wire, fuel injection

Exhaust

Stainless steel 3 into 1 header system, side mounted stainless steel silencer

Final drive

Shaft drive

Clutch

Wet, multi-plate hydraulically operated, torque assist

Gearbox

6-speed

CHASSIS
Frame

Tubular steel trellis frame

Swingarm

Single-sided, cast aluminium alloy with shaft drive

Front Wheels

32 spoke, aluminium rim, for tubeless tyres, 19 x 3.0in

Rear Wheels

32 spoke, aluminium rim, for tubeless tyres, 17 x 4.5in

Front Tyres

120/70 R19

Rear Tyres

170/60 R17

Front Suspension

WP 48mm upside down forks, electronically adjustable damping, 190mm travel.

Rear Suspension

WP monoshock, electronically adjustable semi active damping, 193mm wheel travel. Automatic preload adjustment.

Brakes Front

Twin 305 mm floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Brakes Rear

Single 282mm disc, Nissin 2 piston sliding caliper, switchable ABS

Instrument Display and Functions

Instrument pack with analogue tachometer, fixed segment LCD display and multifunction dot matrix LCD display. Fixed segment LCD display: speedometer, fuel gauge, gear position indicator, service indicator, clock, ambient air temperature, coolant temperature, cruise control status and set speed. Multifunction DOT matrix LCD display: five Riding Modes (Road, Rain, Off-Road, Sport, Rider), windscreen adjustment, TSAS setting, Trip computer (journey distance, journey time, average fuel consumption, average speed), motorcycle information (odometer, range-to-empty, instantaneous fuel consumption, TPMS), settings menu, heated grips status, heated seat status.

DIMENSIONS AND WEIGHTS
Width Handlebars

830 mm (930 mm with hand guards)

Height Without Mirror

1470 mm (1540 mm with higher screen position)

Seat Height

837-857 mm

Wheelbase

1520 mm

Rake

23.1˚

Trail

99.2 mm

Dry Weight

258 Kg

Tank Capacity

20 Litres

FUEL CONSUMPTION
Fuel Consumption **

53.3 MPG

CO2 figures **

EUR4 Standard: 122.0 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real riding results.

overview
Max Power EC

139 PS/137 Bhp (102 kW) @ 9,300 rpm

Max Torque EC

123 Nm @ 6,200 rpm

Brakes Front

Twin 305 mm floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Brakes Rear

Single 282mm disc, Nissin 2 piston sliding caliper, switchable ABS

Front Suspension

WP 48mm upside down forks, electronically adjustable damping, 190mm travel.

Rear Suspension

WP monoshock, electronically adjustable semi active damping, 193mm wheel travel. Automatic preload adjustment.
