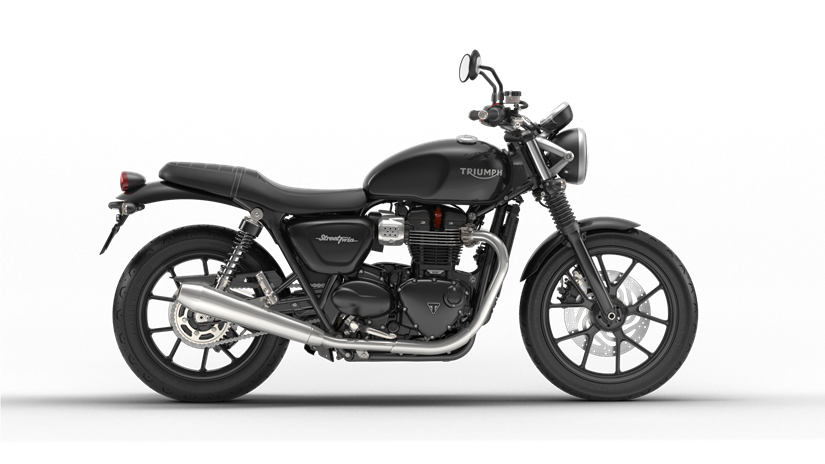

STREET TWIN

The Street Twin is our most contemporary, fun and accessible new Bonneville, powered by an all new high torque 900cc engine. With its unique character, distinctive sound, stripped back styling and dynamic riding experience the new Street Twin is the perfect Bonneville for today's rider.

STREET TWIN
  • High Torque 900cc engine, 270º crank angle parallel twin, liquid cooled with ride-by-wire control
  • Active safety - ABS and Traction Control
  • Slip-assist clutch for effortless precision
  • Over 150 accessories for exciting customizations
  • Compact headlight with a signature Triumph bulb cap badge
  • Elegant fuel tank with contemporary decals and stylish chrome locking filler cap
  • LED rear light with distinctive light pattern
  • Stylish feature packed single clock instruments with complete information
  • Stripped back styling including minimal black painted mudguards
  • USB charging socket
  • Cast wheels, finished in black
  • Immobiliser
COLOR
ENGINE AND TRANSMISSION
Type

Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin

Capacity

900cc

Bore Stroke

84.6 mm / 80 mm

Compression

10.55:1

Max Power EC

55 PS / 54 BHP (40.5kW) @ 5900rpm

Max Torque EC

80 Nm @ 3230rpm

System

Multipoint sequential electronic fuel injection

Exhaust

Brushed stainless steel 2 into 2 exhaust system with twin silencers

Final drive

X ring chain

Clutch

Wet, multi-plate assist clutch

Gearbox

5-speed

CHASSIS
Frame

Tubular steel cradle

Swingarm

Twin-sided, tubular steel

Front Wheels

Cast aluminium alloy multi-spoke 18 x 2.75in

Rear Wheels

Cast aluminium alloy multi-spoke 17 x 4.25in

Front Tyres

100/90-18

Rear Tyres

150/70 R17

Front Suspension

KYB 41mm forks, 120mm travel

Rear Suspension

KYB twin shocks with adjustable preload, 120mm rear wheel travel

Brakes Front

Single 310mm disc, Nissin 2-piston floating caliper, ABS

Brakes Rear

Single 255mm disc, Nissin 2-piston floating caliper, ABS

Instrument Display and Functions

LCD multi-functional instrument pack with analogue speedometer, odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clock, 2x trip, average & current fuel consumption display, traction control status display, TPMS ready & heated grip ready - controlled by a handlebar mounted scroll button.

DIMENSIONS AND WEIGHTS
Width Handlebars

785 mm

Height Without Mirror

1114 mm

Seat Height

750 mm

Wheelbase

1415 mm

Rake

25.1º

Trail

102.4 mm

Dry Weight

198 Kg

Tank Capacity

12 L

FUEL CONSUMPTION
Fuel Consumption **

3.7 l/100 km (76 MPG)

CO2 figures **

EUR0 4 Standard: 87.0 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real riding results.

overview
Max Torque EC

80 Nm @ 3230rpm

Front Suspension

KYB 41mm forks, 120mm travel

Rear Suspension

KYB twin shocks with adjustable preload, 120mm rear wheel travel

Brakes Front

Single 310mm disc, Nissin 2-piston floating caliper, ABS

Brakes Rear

Single 255mm disc, Nissin 2-piston floating caliper, ABS
