Springfield

AT THE END OF EVERY ROAD IS A STORY.

You have everything you need to turn countless miles of yellow-dotted lines into stories.

Springfield
You. The road. Nothing else. That’s the definition of pure riding. And that’s exactly what you get with the Indian Springfield, along with features like a keyless ignition. Quick-release windshield. And remote-locking saddlebags. Want more? Add a premium audio system, should you ever want a new soundtrack to go with the satisfying rumble of your Thunder Stroke 111 engine. Be legendary.
COLOR

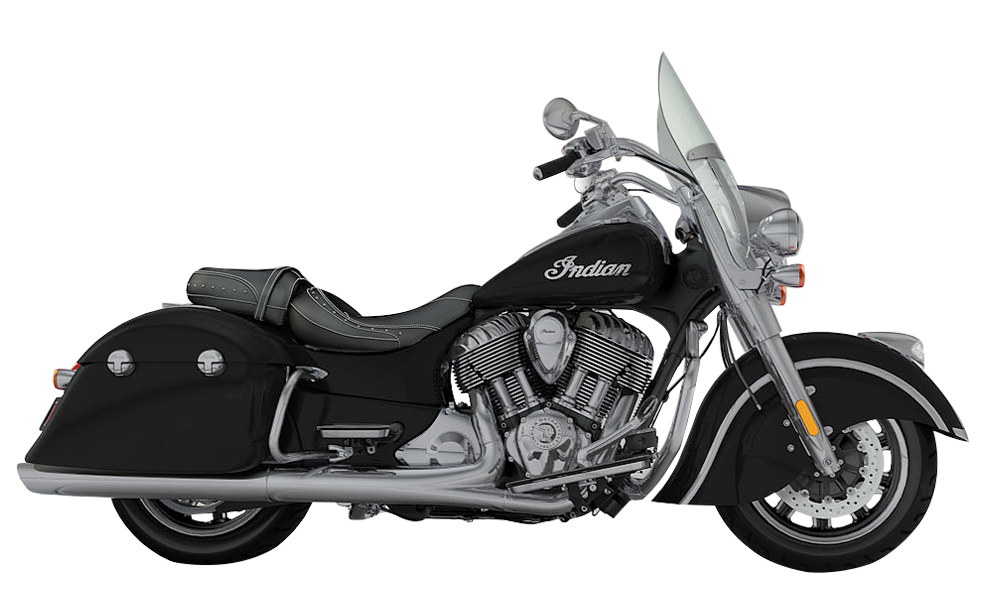

  • Thunder Black

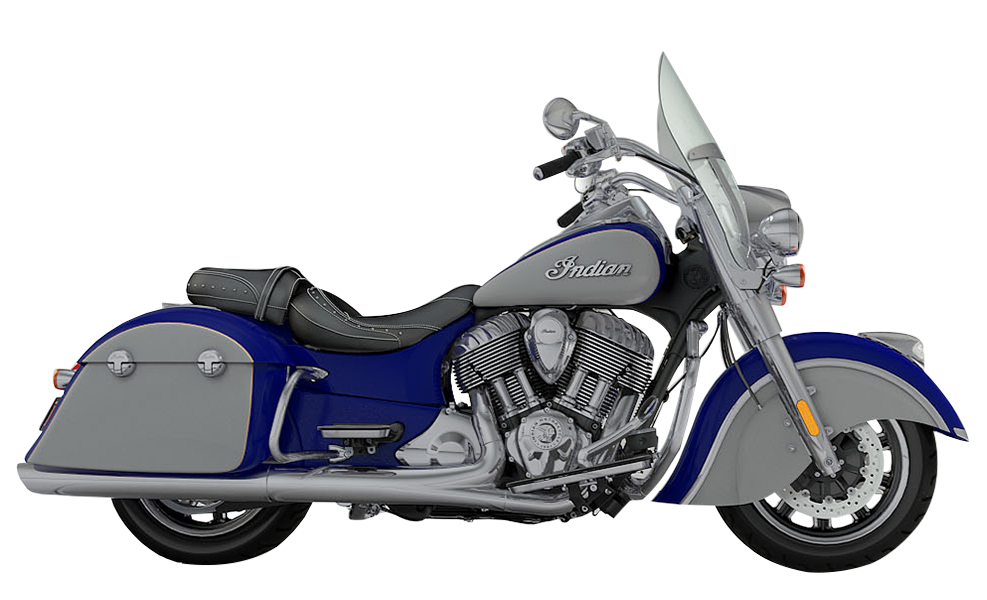

  • Blue Sapphire over Star Silver

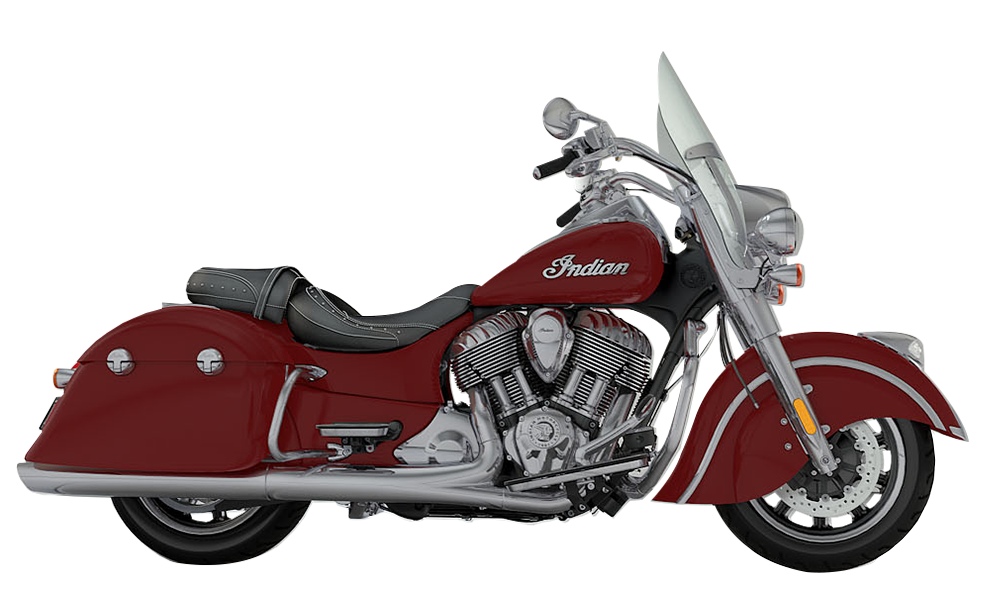

  • Indian Motorcycle® Red
  • Steel Gray over Burgundy Metallic
ENGINE
Engine Type

Thunder Stroke® 111

Displacement

111 cu in (1811 cc)

Bore x Stroke

3.976 in x 4.449 in (101 mm x 113 mm)

Compression Ratio

9.5 : 1

Electronic Fuel Injection System

Closed Loop Fuel Injection / 54 mm Bore

Primary Drive

Gear Drive Wet Clutch

Drive/Driven Clutch

Wet, Multi-Plate

Final Drive

2.2 : 1

Peak Torque

119.2 ft-lbs (161.6 Nm)

Peak Torque RPM

3000 rpm

CHASSIS
Brakes/Front

Dual / 300 mm Floating Rotor / 4 Piston Caliper

Brakes/Rear

Single / 300 mm Floating Rotor / 2 Piston Caliper

Wheels/Front

Cast 16 in x 3.5 in

Wheels/Rear

Cast 16 in x 5 in

Tires/Front

Dunlop® Elite 3 130/90B16 73H

Tires/Rear

Dunlop® Elite 3 Multi-Compound 180/60R16 80H

Exhaust

Split Dual Exhaust w/ Cross-Over

DIMENSIONS
Wheelbase

67.0 in (1701 mm)

Seat Height

26.0 in (660 mm)

Ground Clearance

5.6 in (142 mm)

Overall Height

56.8 in (1442 mm)

Overall Length

101.7 in (2583 mm)

Overall Width

39.0 in (990 mm)

Rake

25°

Trail

5.2 in (133 mm)

Fuel Capacity

5.5 gallons (20.8 liters)

GVWR

1385 lbs (630 kg)

Weight (Empty Tank / Full of Fuel)

830 lbs / 862 lbs (376 kg / 391 kg)

ORTHER
Standard Equipment

ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Front and rear Highway Bars compatible with lower weather protection; Indian® Script Tank Badge; Keyless Start; Quick-Release Windshield; Quick-Release Hard Saddlebags, Tire Pressure Monitoring; Adjustable Passenger Floorboards;

Gauges

Tank Mounted Electronic Speedometer with Odometer; Dual Tripmeters; Digital Tachometer; Ambient Air Temperature; Fuel Range; Average Fuel Economy; Battery Voltage; Gear Position Display; Real-Time Clock; Vehicle Trouble Code Read-Out; Heated Grip Level (If Heated Grips Installed); Low Engine Oil Pressure; 9 LED Telltale Indicators: High Beam, Chassis Fault, Turn signals (separate), ABS, Neutral, TPMS, Check Engine, Sidestand; Tank Mounted Electronic Fuel Gauge with Low Fuel LED Indicator

Suspension: Front - Type/Travel

Telescopic Fork / 4.7 in (119 mm)

Front Fork Tube Diameter

46 mm

Suspension: Rear - Type/Travel

Single Shock w/ Air Adjust / 4.5 in (114 mm)

GEAR RATIO (OVERALL)
1st

9.403 : 1

2nd

6.411 : 1

3rd

4.763 : 1

4th

3.796 : 1

5th

3.243 : 1

6th

2.789 : 1
